Westfield parts and upgrades

WESTFIELD PART NUMBER: SEIW-MAZDA-SDV-COMP

CONTENTS

IVA plastic cover kit
Rack mounting kit
8mm fuel hose
Track rod ends
Ball joint set
Fuel pump kit
Shock absorber kit
Steering rack
Fastener kit
Aluminium radiator
Expansion tank
Expansion tank cap
Windscreen washers, pump and tank
XK fuel tank straps
Radiator mounting bracket
Thermostat washer
Expansion tank mounting bracket
Fan mounting kit
Pair of interior panels – (vinyl cover)
Fastener kit
Wiper wheel box
Windscreen wiper motor kit
Wiper rack & tube set
Washer tubing
Wiper set (black)
Windscreen washer jet (black)
Windscreen & mounting pillars (black)
Rear no plate mount (fibre glass)
Fuel hose (57 mm / 2-1/4”)
Fuel cap & inlet assembly – unleaded
Wiring grommets
Fog / reverse lamp levelling bracket
Hose clamps
Indicator pod (plastic)
Wing mirrors – 1 pair (black)
Nose grill (expanded metal)
3-point safety belt
Roll bar (black)
Silencer – with cat (5 1/2” dia)
Exhaust cover (5 1/2” dia)
Kick strip – 1 pair (vinyl)
Adjustable sport seats – 1 pair (vinyl)
Carpet set
Dashboard
Interior mirror
Crash pad covered
Fastener kit
Bonnet catch set
Exhaust manifold down pipe
Battery lead – positive
Battery lead – negative
Battery clamp
Battery tray
Kick strip – 1 pair (vinyl)
Brake pipe clips
Tie rap clips
Fuel pipe
Clevis pin
Light set including:
Headlamps (black)
Front indicators
Reversing light
Side light, indicators, and rear lamp units
Number plate light

WESTFIELD PART NUMBER: 5500100

CONTENT

ZK Body Kit – scuttle, bonnet nose, screen fillet, wings, boot box,
Westfield badges
Fuel tank, sender and strap
Body mounting kit

WESTFIELD PART NUMBER: SEIW CHY MAZDA-EPX

CONTENT

Space frame chassis

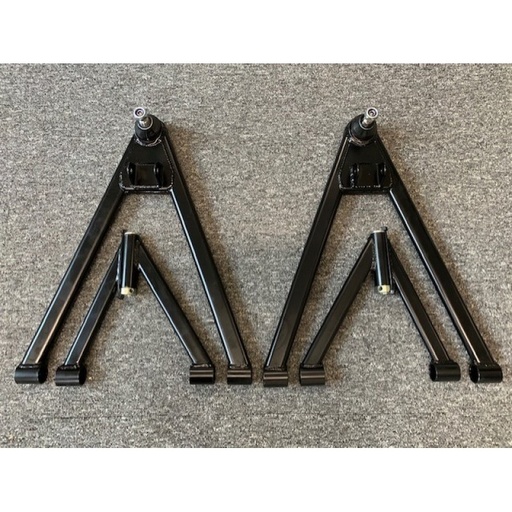

Top and bottom front wishbones
Engine mounting brackets
Brake lines (Aeroquip and T-Piece)
Aluminium panels set – floor pan, seat back, tunnel, scuttle
Nut and bolt pack
Riv-Nut pack
Suspension bushes
Chassis plate
Wing brackets
Hand brake cable
Bottom rear wishbones
Construction manual

WESTFIELD PART NO: 3230195

DESCRIPTION:

Gearbox conversion for Westfield XI - 5 speed

Kit Includes:

-clutch plate
-clutch cover
-clutch release bearing
-spigot bearing for flywheel
-propshaft type 9
-gearbox type 9
-bell housing
-type 9 gearbox mounting rubber
-speedo cable

WESTFIELD PART NO: 1302000

DESCRIPTION:

ZK Full Rear Body Section

When placing your order please leave a note of the colour you wish to order from Ash Grey, Chrome Yellow, Black, Orange, Post Office Red, Electric Blue, Navy Blue, British Racing Green, White or Westfield Racing Green.

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

Please make sure the part and colour you have chosen is correct as this is a made to order part and cannot be returned or refunded once made.

WESTFIELD PART NO: 1207004

DESCRIPTION:

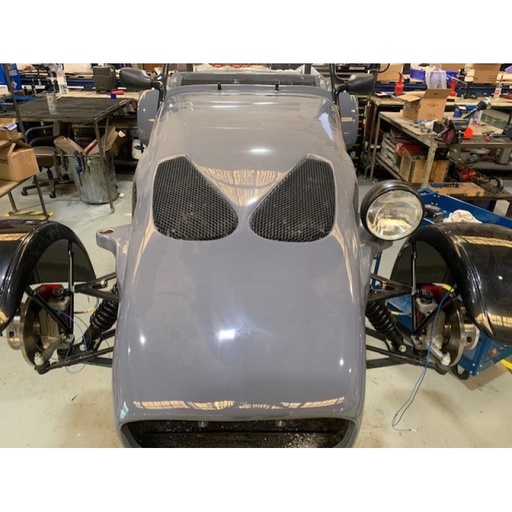

FW Nose and Bonnet

When placing your order please leave a note of the colour you wish to order from Ash Grey, Chrome Yellow, Black, Orange, Post Office Red, Electric Blue, Navy Blue, British Racing Green, White or Westfield Racing Green.

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

Please make sure the part and colour you have chosen is correct as this is a made to order part and cannot be returned or refunded once made.

WESTFIELD PART NO: 4300040

DESCRIPTION:

One pair of built up Golf rear upright assembly's.

Includes Rear uprights, Stub Shafts, Hubs, Discs and Black Calipers.

WESTFIELD PART NO: 5530124

DESCRIPTION:

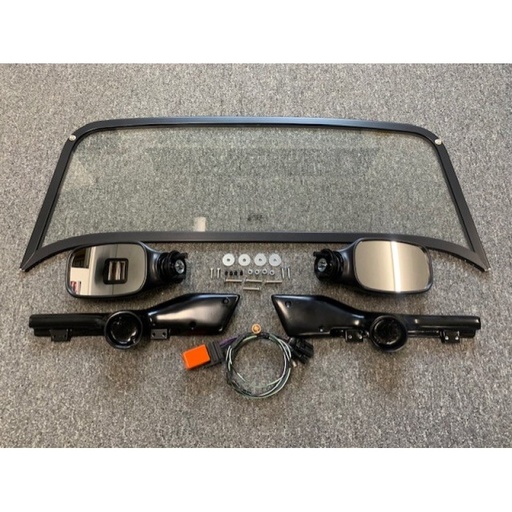

Black Heated Windscreen Kit Epoxy

Kit includes, heated windscreen, windscreen pillars, mirrors, fittings, heated screen loom and warning light.

If collection is not possible you will need to order and pay for a windscreen packing box to enable us to ship your windscreen safely.

Please note as this item is above 100cm in length we incur a surcharge from our shippers which is included in the delivery price at point of checkout.

WESTFIELD PART NO: 5530132

DESCRIPTION:

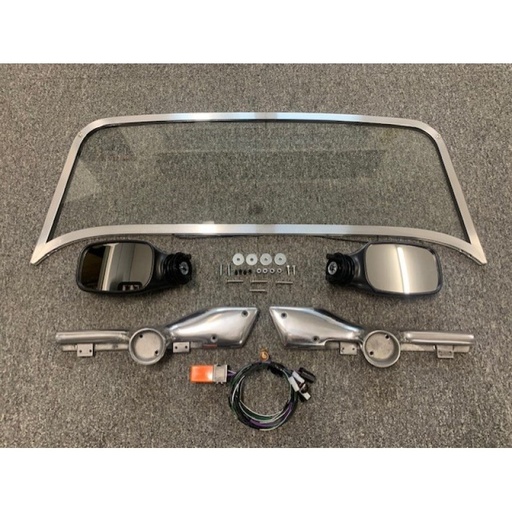

Windscreen Kit Heated Polished
Kit includes, heated windscreen, windscreen pillars, mirrors, fittings, heated screen loom and warning light

If collection is not possible you will need to order and pay for a windscreen packing box to enable us to ship your windscreen safely.

Please note as this item is above 100cm in length we incur a surcharge from our shippers which is included in the delivery price at point of checkout.

WESTFIELD PART NO: 4633025

DESCRIPTION:

Full FIA specification roll cage. To suit wide bodied Westfields.
Includes all fittings, nuts, bolts and washers. 2-3 weeks lead time.

FW roll bar covers are not included and will need to be purchased separately. The part number for these is 1290020

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY AND CANNOT BE SHIPPED.

Material used:PTG700/T45 vs CDS Material Specifications:T45 (High Tensile Carbon Manganese Steel) & PTG700 has a tensile strength between 700M/mm2-900N/mm2, whereas CDS (Cold Drawn Seamless Carbon Steel) has tensile strength of approximately 480N/mm2.The minimum yield strength (when metal starts to deform) of T45 & PTG700 (620N/mm2) is almost double that of CDS.

WESTFIELD PART NO: 1131513

DESCRIPTION:

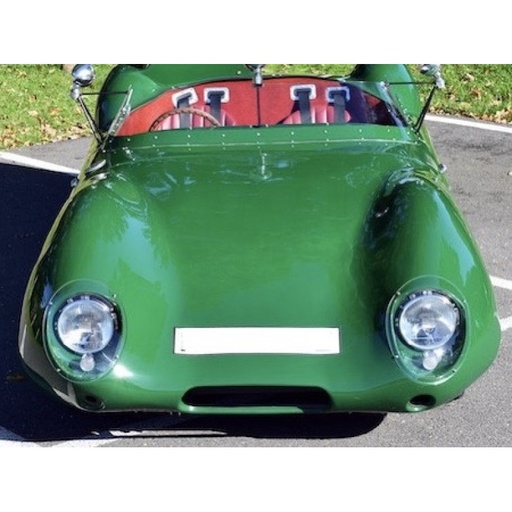

Westfield XI Nose section
Please leave a message on your order of the colour you require.
Colour Choice - Ash Grey, Black, British Racing Green, Navy Blue or White
PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

Please make sure the part and colour you have chosen is correct as this is a made to order part and cannot be returned or refunded.

WESTFIELD PART NO: 1111520

DESCRIPTION:

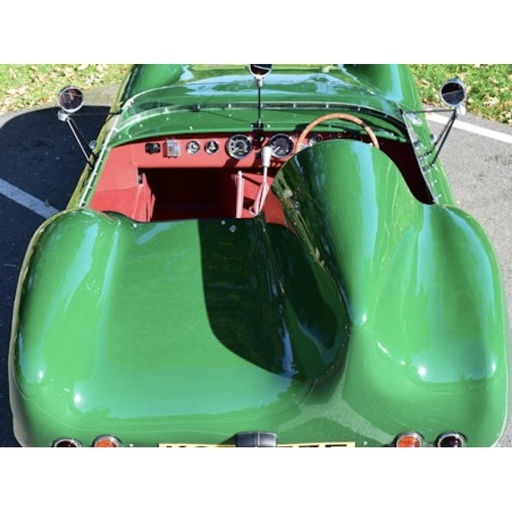

Westfield XI Rear section
Please leave a message on your order of the colour you require.
Colour Choice - Ash Grey, Black, British Racing Green, Navy Blue or White
PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

Please make sure the part and colour you have chosen is correct as this is a made to order part and cannot be returned or refunded.

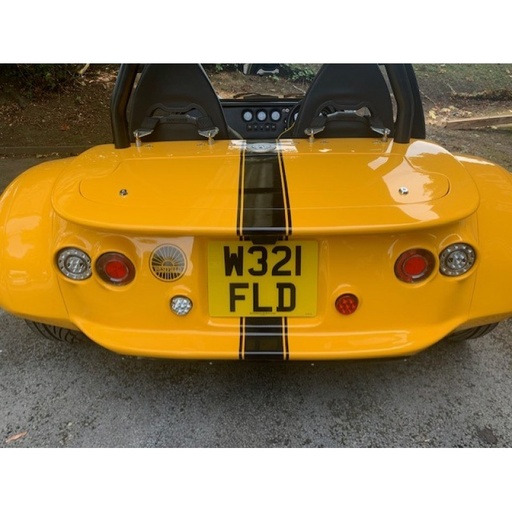

WESTFIELD PART NO: 1304015

DESCRIPTION:

FW Rear Centre Panel

When placing your order please leave a note of the colour you wish to order from Ash Grey, Chrome Yellow, Black, Orange, Post Office Red, Electric Blue, Navy Blue, British Racing Green, White or Westfield Racing Green.

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

Please make sure the part and colour you have chosen is correct as this is a made to order part and cannot be returned or refunded once made.

WESTFIELD PART NO: 5502007

DESCRIPTION:

ZK Lockable Boot Lid Kit complete with all fixings.

When placing your order please leave a note of the colour you wish to order from Ash Grey, Chrome Yellow, Black, Orange, Post Office Red, Electric Blue, Navy Blue, British Racing Green, White or Westfield Racing Green.

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

Please make sure the part and colour you have chosen is correct as this is a made to order part and cannot be returned or refunded once made.

WESTFIELD PART NO: 1206000

DESCRIPTION:

ZK V8 Bonnet

When placing your order please leave a note of the colour you wish to order from Ash Grey, Chrome Yellow, Black, Orange, Post Office Red, Electric Blue, Navy Blue, British Racing Green, White or Westfield Racing Green.

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

Please make sure the part and colour you have chosen is correct as this is a made to order part and cannot be returned or refunded once made.

WESTFIELD PART NO: 2340076

DESCRIPTION:

Westfield Racing 4 pot caliper upgrade kit

The kit includes, Westfield Racing pot callipers, Grooved and vented 283mm front discs, Ferodo DS2500 pads (upgraded pad spec), All fittings to mount  the parts to your car.

Will fit Westfield aluminium uprights and hubs and ford Cortina front uprights and Cortina hubs.

THIS BRAKE KIT WILL FIT INSIDE WESTFIELD STANDARD FITMENT 13" WHEELS
Flexible hoses not included in kit. If you require hoses they are available separately

WESTFIELD PART NO: 2340075

DESCRIPTION:

Westfield Racing 4 pot caliper upgrade kit

The kit includes, Westfield Racing pot callipers, Grooved and vented 283mm front discs, Ferodo DS2500 pads (upgraded pad spec), All fittings to mount  the parts to your car.

Will fit Westfield aluminium uprights and hubs and ford Cortina front uprights and Cortina hubs.

THIS BRAKE KIT WILL FIT INSIDE WESTFIELD STANDARD FITMENT 13" WHEELS
Flexible hoses not included in kit. If you require hoses they are available separately

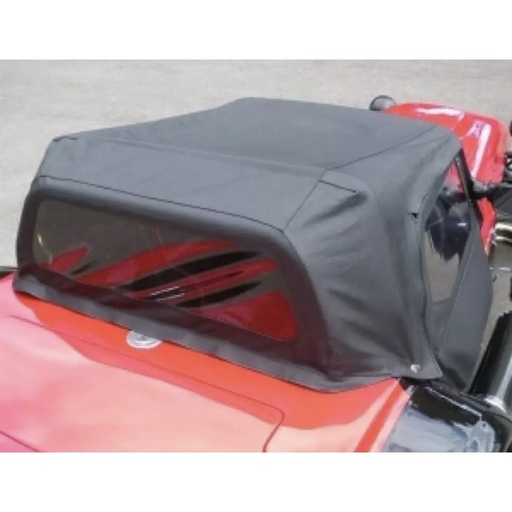

WESTFIELD PART NO: 5552280

DESCRIPTION:

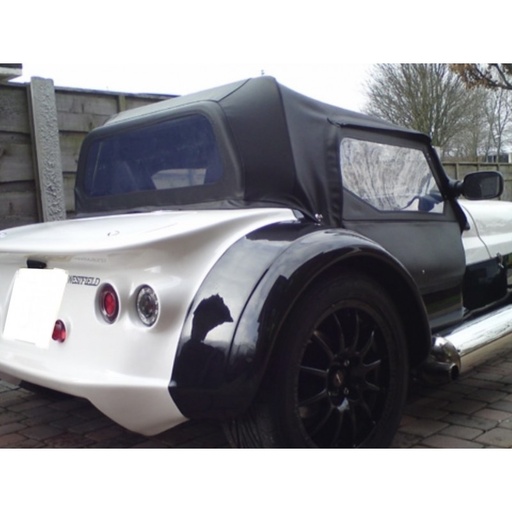

Fw Hood and Frame, Inc all fixings.

WESTFIELD PART NO: 1202000

DESCRIPTION:

ZK Flat Bonnet

When placing your order please leave a note of the colour you wish to order from Ash Grey, Chrome Yellow, Black, Orange, Post Office Red, Electric Blue, Navy Blue, British Racing Green, White or Westfield Racing Green.

PLEASE NOTE THAT THIS ITEM IS COLLECTION ONLY

Please make sure the part and colour you have chosen is correct as this is a made to order part and cannot be returned or refunded once made.

WESTFIELD PART NO: 55402XX

DESCRIPTION:

Sidescreens including fitting kit, suits standard screen for ZK or FW set up with standard roll bar or half cage.
These will not fit standard/narrow body cars.
