WESTFIELD PART NO: 3702093

DESCRIPTION:

Wide track front wishbone kit 3rd generation.

Lighter widetrack kit, using new style light weight ball joints, a development filter down from the Sport Turbo ST3 Westfield.

The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

Kit Includes:

2 top and 2 bottom powder coated +50mm wide track wishbones 3rd generation
2 camber adjusters for top wishbones
4 top hat bushes for aluminium uprights to fit new style ball joints 2 upper 2 lower
2 top ball joints and nuts 3rd generation
2 lower ball joints and retaining clips 3rd generation
All nuts bolts and washers to fit the kit to your car.

You will also require

8 suspension bushes (4313001)

2 longer brake hoses. (sei rear brake hoses required 2311007)2 Wide track front springs (3702093)

NOTES.

This kit is only suitable for cars with Westfield aluminium front uprights, to enable the ball joint sleeves to be replaced with the new version supplied in the kit. (This operation will require the use of a hydraulic press) this process can be can be carried out by Westfield if required for a small fee.

*Using this new widetrack kit, you will require 2 rear dampers to use on the front of the car, as shock extensions cannot be used on this widetrack kit***If you have existing standard track anti roll bar - This will not fit this application, replacement widetrack anti roll bar 3713148**

WESTFIELD PART NO: 1711091

DESCRIPTION:

Zetec Exhaust Manifold
Primary Manifold for Zetec Blacktop Engine
Outlet (silencer end) is 2 inches in diameter
Manifold will also suit the silver top zetec engine

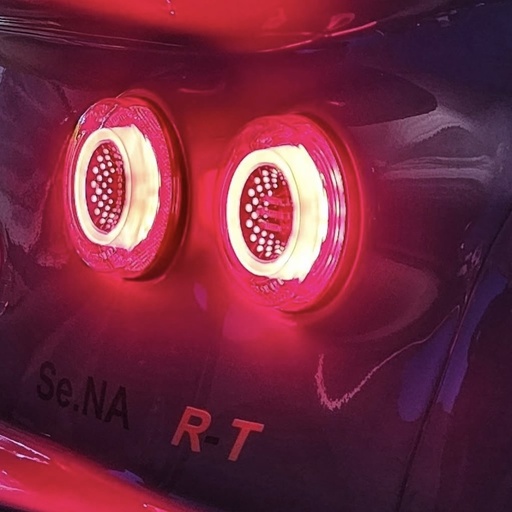

WESTFIELD PART NO: 3500120

All new 2026 Westfield tail light kit as used on the new Se.Na model. The kit includes:

2 x LED Rear Tail Lights with Integrated Fog Lamps
2 x LED Rear Stop/Tail Lamp with integrated Indicator Lamps
2 x LED Reverse Lamps
4 x LED Lamp Mounting Plates

This kit is IVA compliant.

Please note these are not a direct fit to Westfield Chassis Loom (2921175) and will require modification to the loom. The reverse and fog lights will need extending and the plugs amending for the new tail lamps

WESTFIELD PART NO: 2940064

DESCRIPTION:

Zetec Blacktop Alternator Fitting Kit
Kit components:1 x 4942056 - Alternator plate1 x 2945156 - Alternator belt 2L Blacktop1x x 2942126B - Alternator bracket Zetec R1 x 1416143 - Spacer idler pulley Zetec R1 x 1417132 - Spacer idler pulley short1 x 1470189B - Mounting plate idler pulley1 x 2943038 - Pulley1 x 2943011 - Idler pulley1 x 6811010 - M10 Lock washer single1 x 6823UTO - M10 washer1 x 8155450 - M10x45 socket cap bolt1 x 8111800 - M10x 80 hex head bolt6 x 6802801 - M8 plain washer1 x 6811008 - M8 washer lock singe coil4 x 71230008 - M8 x 1.25 nyloc nut1 x 8111308 - M8 x 30 hex head 1 x 8111358 - M8x35 hex head bolt3 x 8111408 - M8x40 hex head bolt1 x 8165840 - M8x40 special cap head

WESTFIELD PART NO: 5220038

DESCRIPTION:

Zetec Steering Column Kit
This Kit will only suit black top zetec engines with standard injection or throttle bodies. If you have throttle bodies installed you can use 5221000 lower single piece column.

WESTFIELD PART NO: 3240010

DESCRIPTION:

2.0 Zetec Black Top Clutch Kit

WESTFIELD PART NO: 2951010

DESCRIPTION:

Zetec Starter Motor To Suit Raceline Sump
Lightweight, high torque starter motor for Zetec engines with raceline sump, Zetec flywheel and type 9 gearbox.
Specification:Kilowatts     1.40 kWTeeth           10Boss Size     89mmVoltage        12 VWeight:       2.90 kg
Current spec starter motor for black top Zetec with Raceline sump.

WESTFIELD PART NO: 3712301B

DESCRIPTION:

Westfield XI Front Top Wishbone

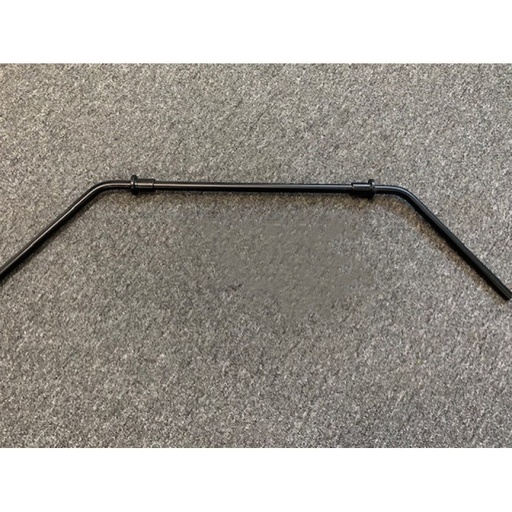

WESTFIELD PART NO: 3713138

DESCRIPTION:

Rear anti roll bar FW bodywork set up.
Please note that this kit is not suitable for ZK bodywork
Photo is for illustration purpose only.

Please note as this item is above 100cm in length we incur a surcharge from our shippers which is included in the delivery price at point of checkout.

WESTFIELD PART NO: 5222019

DESCRIPTION:

Top Steering Column with Steering Locks, Keys and Loom
To suit all models except Westfield XI and Sport Turbo

WESTFIELD PART NO: 5221216

DESCRIPTION:

Westfield XI Top Steering Column

WESTFIELD PART NO: 5551057B

DESCRIPTION:

5 piece hood frame kit to suit FW body work
Kit includes 2 small brackets that fit inside car and 3 connecting brackets over top to support hood.

WESTFIELD PART NO: 3712215B

DESCRIPTION:

3rd Gen Wide Track Front Top Wishbone
The full set of wishbones is 1 kg lighter than the standard Westfield widetrack

WESTFIELD PART NO: 4311152B

DESCRIPTION:

Rear top wishbone
To suit all seven style models from 1998 onwards

WESTFIELD PART NO: 3712212B

DESCRIPTION:

Wide Track Front Top Wishbone
Will not suit 3rd gen suspension setups

WESTFIELD PART NO: 5221000

DESCRIPTION:

Lower steering column including high tensile bolts
End to end measurement is 815mm.
This steering column can be used on Black Top Zetec's that have throttle bodies fitted to replace the 3 piece column kit.

WESTFIELD PART NO: 3712052B

DESCRIPTION:

Standard Track Front Top Wishbone
Will not suit wide track or 3rd gen wishbone setups

WESTFIELD PART NO: 4917002

DESCRIPTION:

Fuel sender unit including fittings
Suits both FW and ZK fuel tanks
May need modification to fit to tank depending on the age of the tank

WESTFIELD PART NO: 4957005

DESCRIPTION:

Sport 250 Top Lambda Sensor

Please note that this is a clearance section item and cannot be returned or refunded.

Once this item is sold out, it will not be available again from Westfield Chesil Ltd.

If the item is purchased but out of stock due to high demand, a full refund will be issued.

Price Reduced from £199.99

WESTFIELD PART NO: 3750001

DESCRIPTION:

Ball joint set - suitable for standard track / early widetrack wishbones.

Comes with:
2 top ball joints
2 bottom ball joints

Including bolts and nuts for bottom ball joints and lock nuts for top ball joints.
Fits all current Westfield lower arms, standard track and wide track only.
Does NOT fit 3rd generation wishbones.
